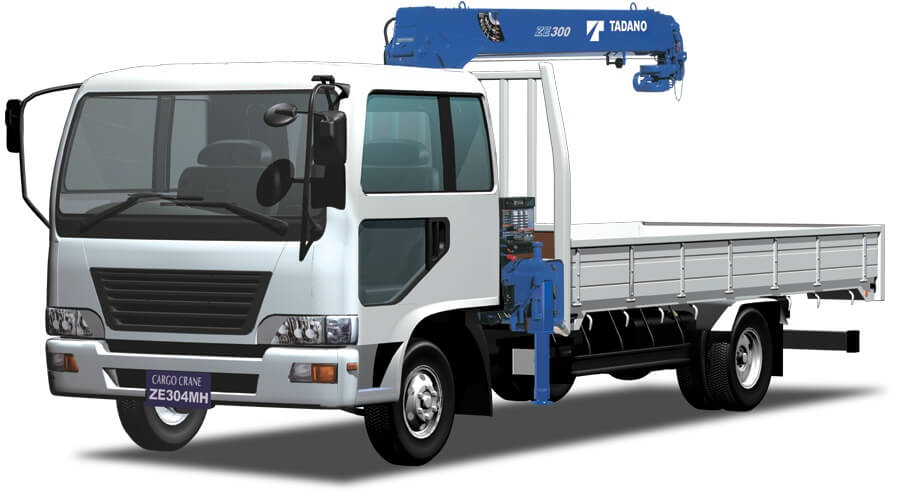

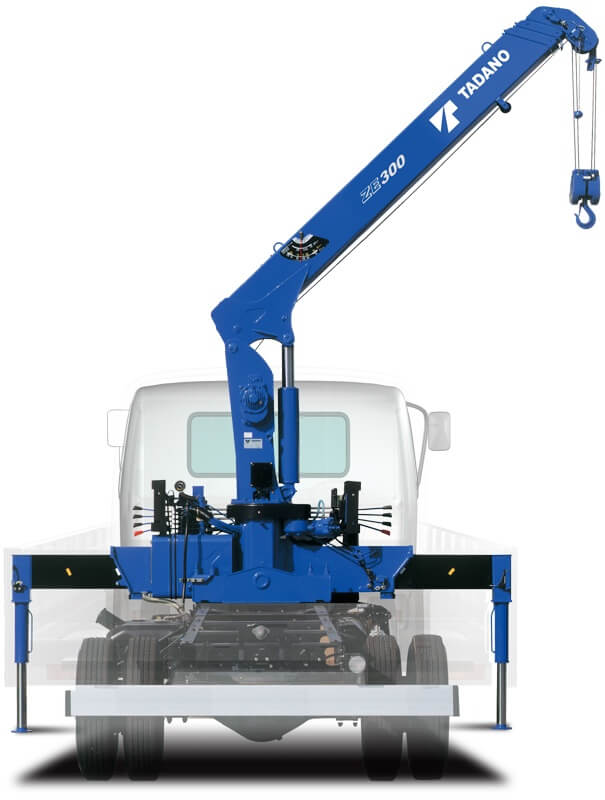

TM-ZE300 Series

Tadano’s TM-ZE300 Series are a great addition to your medium 8-17 tonne vehicle. Loaded up with globally recognised technology, strong pentagonal booms and central control panels with AML, the 300 series are a versatile, medium-duty vehicle loader crane, suitable for irrigation, marine and pole and sign work projects.

 Features Include:

  • Tadano’s Equalizer Crane Support – Three Point Support System.
  • Working Height Limiter
  • AML system
  • Centralized Control Panel
  • Radio Controller
  • Interlocking Jack System

TM-ZE300 Series

Tadano’s TM-ZE300 Series are a great addition to your medium 8-17 tonne vehicle. Loaded up with globally recognised technology, strong pentagonal booms and central control panels with AML, the 300 series are a versatile, medium-duty vehicle loader crane, suitable for irrigation, marine and pole and sign work projects.

 Features Include:

  • Tadano’s Equalizer Crane Support – Three Point Support System.
  • Working Height Limiter
  • AML system
  • Centralized Control Panel
  • Radio Controller
  • Interlocking Jack System
Request a Quote

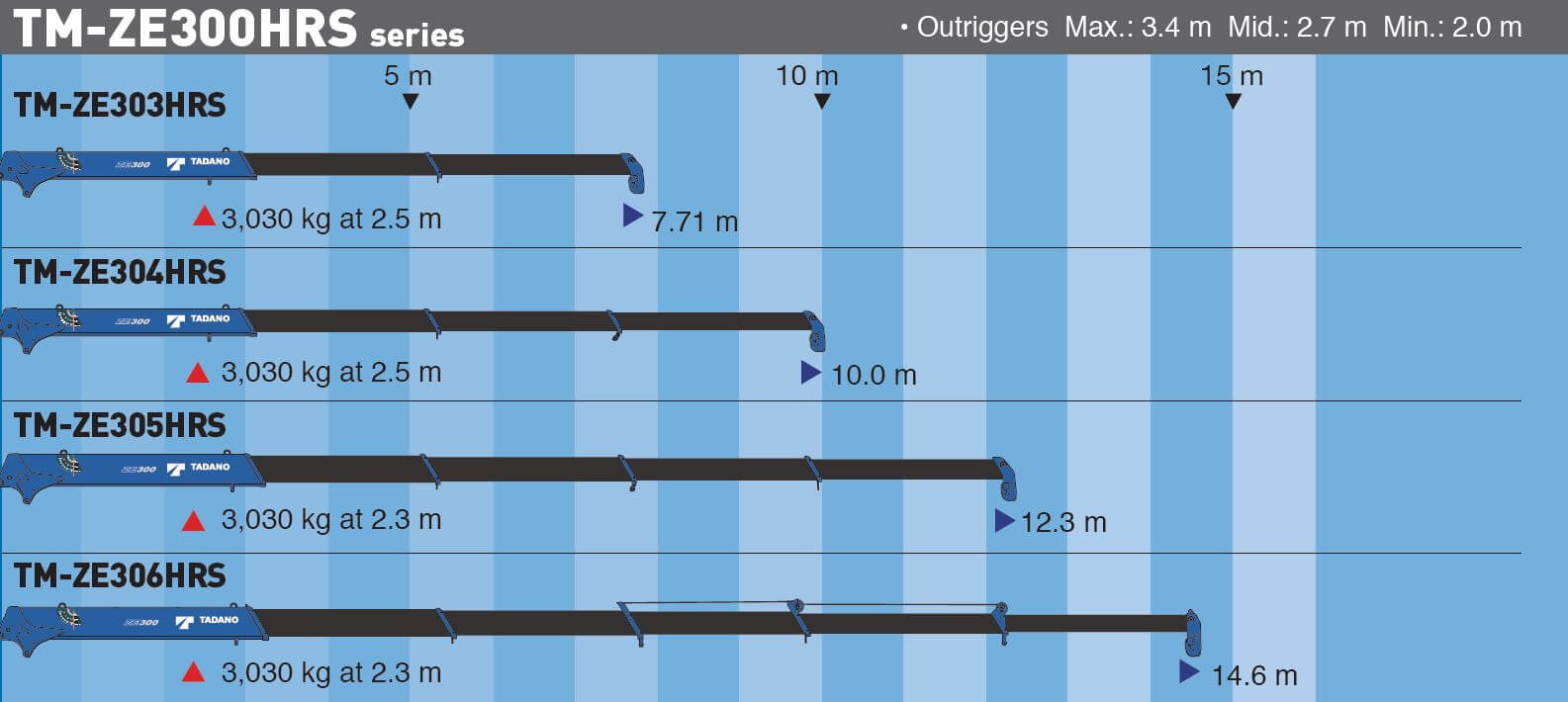

  • Max. Lifting Capacity: 3,030kg x 2.5m
  • Section: 4
  • Max. Hook Height: 11.4m
  • Max. Load Radius: 9.80m
  • Boom Length: 3.34m - 10.00m
  • Outrigger Extension: 3.4m
  • Max. Lifting Capacity: 3,030kg x 2.5m
  • Section: 4
  • Max. Hook Height: 11.4m
  • Max. Load Radius: 9.80m
  • Boom Length: 3.34m - 10.00m
  • Outrigger Extension: 3.4m
  • Max. Lifting Capacity: 3,030kg x 2.3m
  • Section: 5
  • Max. Hook Height: 13.7m
  • Max. Load Radius: 12.10m
  • Boom Length: 3.52m - 12.30m
  • Outrigger Extension: 3.4m
  • Max. Lifting Capacity: 3.030kg x 2.3m
  • Section: 6
  • Max. Hook Height: 15.9m
  • Max. Load Radius: 14.40m
  • Boom Length: 3.65m - 14.60m
  • Outrigger Extension: 3.4m
  • Max. Lifting Capacity: 3,030kg x 2.6m
  • Section: 3
  • Max. Hook Height: 9.2m
  • Max. Load Radius: 7.50m
  • Boom Length: 3.28m - 7.71m
  • Outrigger Extension: 4.2m
  • Max. Lifting Capacity: 3,030kg x 2.5m
  • Section: 4
  • Max. Hook Height: 11.4m
  • Max. Load Radius: 9.80m
  • Boom Length: 3.34m - 10.00m
  • Outrigger Extension: 4.2m
  • Max. Lifting Capacity: 3,030kg x 2.3m
  • Section: 5
  • Max. Hook Height: 15.9m
  • Max. Load Radius: 14.40m
  • Boom Length: 3.65m - 14.60m
  • Outrigger Extension: 4.2m
  • Max. Lifting Capacity: 3,030kg x 2.3m
  • Section: 6
  • Max. Hook Height: 15.9m
  • Max. Load Radius: 14.40m
  • Boom Length: 3.65m - 14.60m
  • Outrigger Extension: 4.2m
