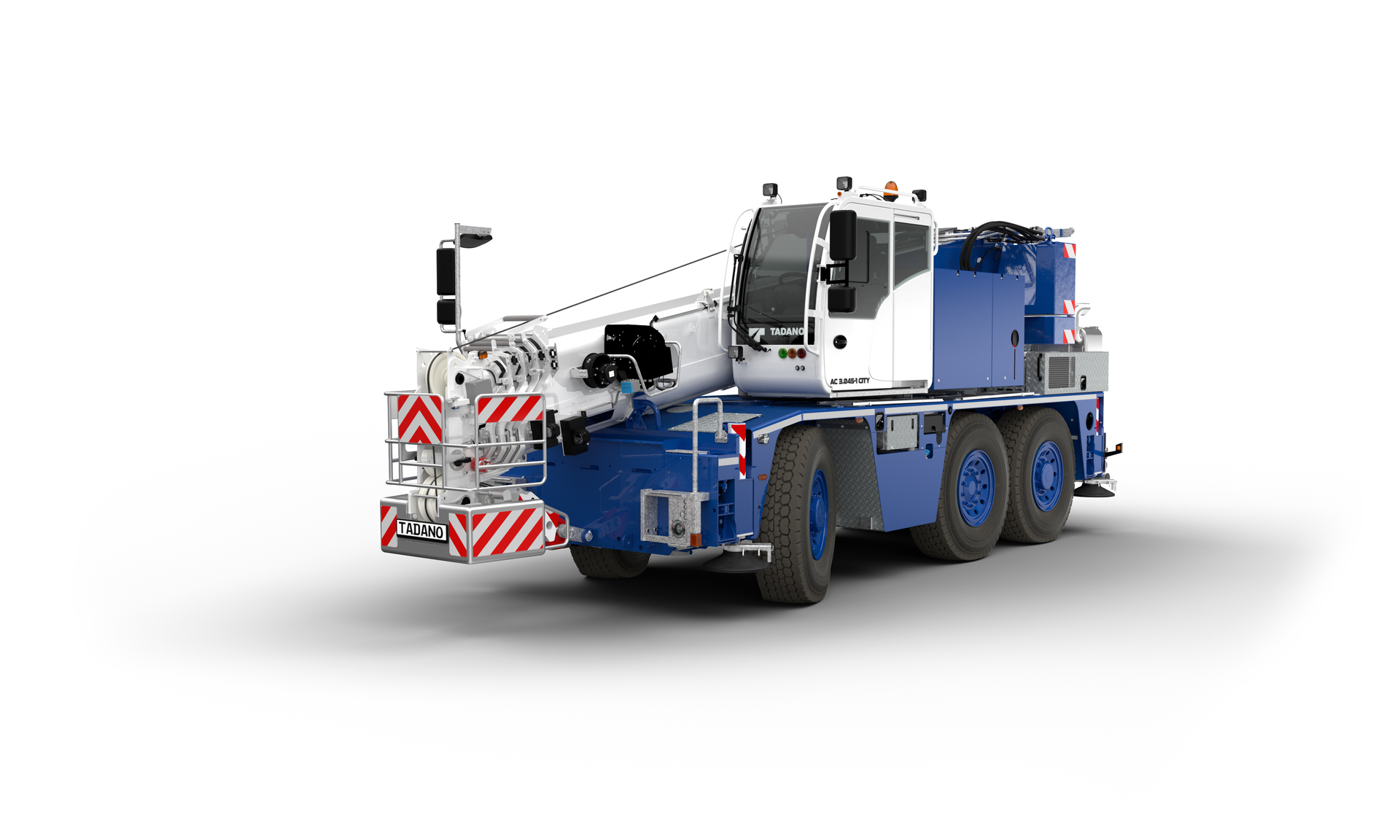

AC 3.045-1 City Crane

The Most Compact Crane in the 45-Tonne Capacity Class

Fits Everywhere.

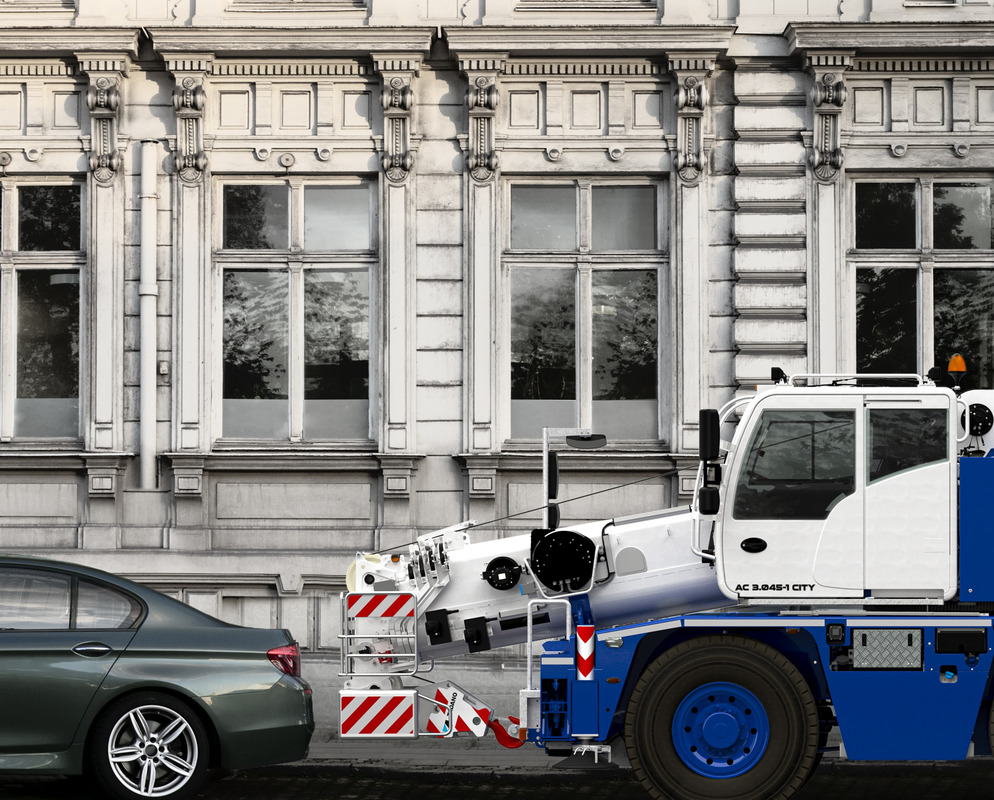

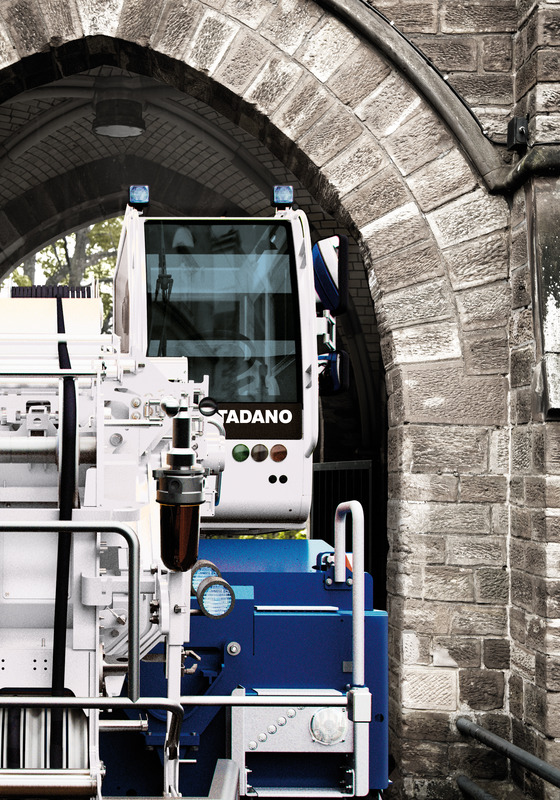

With its short base boom of just 7.8m / 25.6 ft the AC 45 City is able to work in buildings with a relatively low clearance while still keeping its boom at a steep angle, enabling it to lift heavy loads indoors. This compact, 3-axle unit stays under 12t / 13.2 USt axle load limits even when outfitted with its full equipment for outstanding transportability. The addition of Flex Base with step less outrigger positioning adds further versatility and improved performance for HA, MS, and telescopable loads.

Sustainable Environmental Solutions

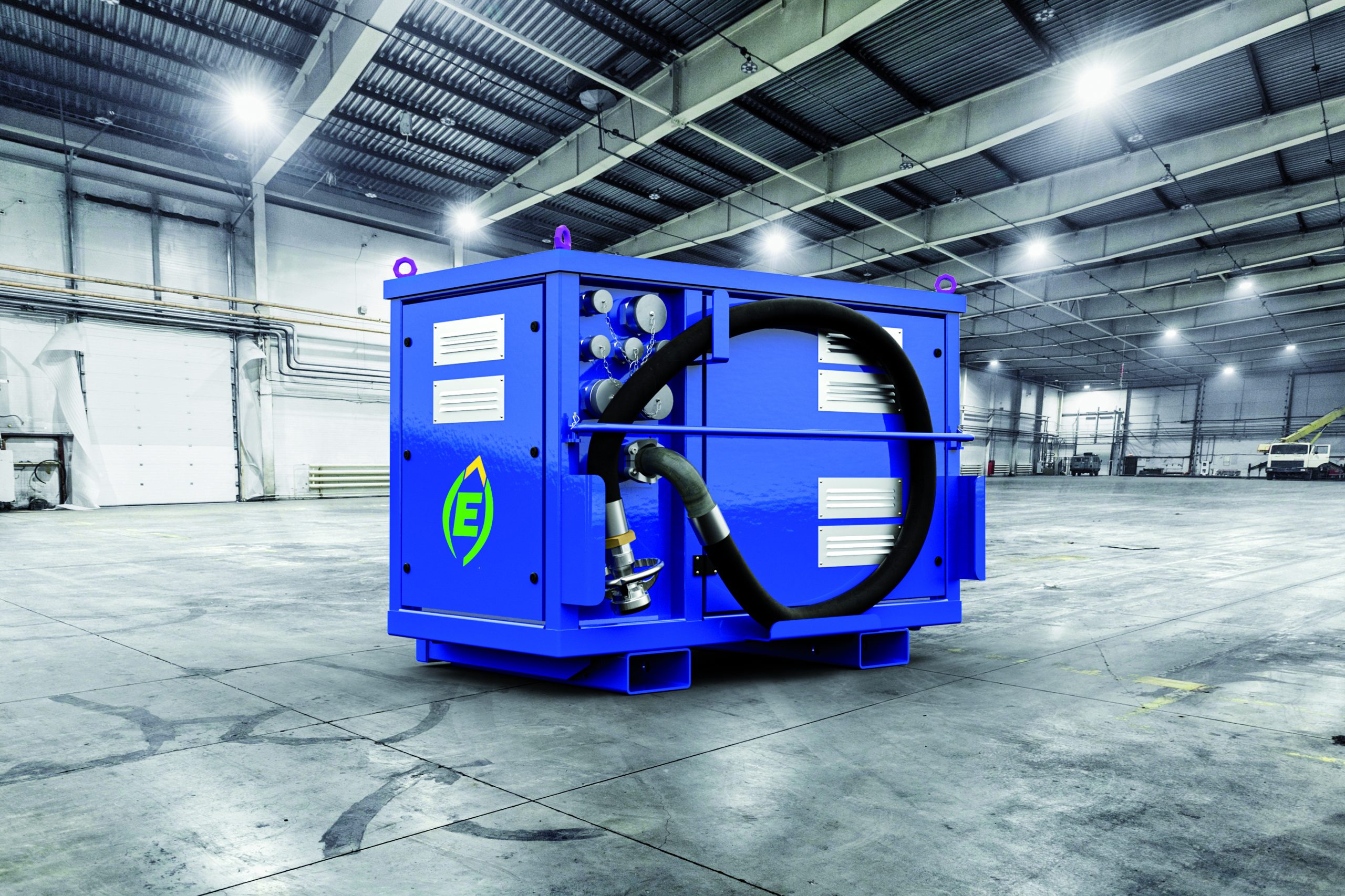

The electrohydraulic E-Pack system quickly connects and features an electric motor for the ultimate in zero-emission, low-noise, environmentally friendly operation, especially in tight urban spaces, at night, and indoor areas where this system shines. Along with quick coupling hydraulic hose connections, when on-site the E-Pack is easily unloaded and connected to a common 400V / (32A) 63A electric power supply. Its intelligent electric motor control system ensures efficient power use to lower costs versus diesel-powered cranes. Corresponding controls integrate seamlessly, while the hydraulic air conditioning system keeps the operator comfortable and in control with the E-Pack touch screen display.

Electrohydraulic system with zero emission at crane operation. Perfect for urban areas, at night or for indoor operation.

Videos

AC 3.045-1 City Crane

The Most Compact Crane in the 45-Tonne Capacity Class

Fits Everywhere.

With its short base boom of just 7.8m / 25.6 ft the AC 45 City is able to work in buildings with a relatively low clearance while still keeping its boom at a steep angle, enabling it to lift heavy loads indoors. This compact, 3-axle unit stays under 12t / 13.2 USt axle load limits even when outfitted with its full equipment for outstanding transportability. The addition of Flex Base with step less outrigger positioning adds further versatility and improved performance for HA, MS, and telescopable loads.

Sustainable Environmental Solutions

The electrohydraulic E-Pack system quickly connects and features an electric motor for the ultimate in zero-emission, low-noise, environmentally friendly operation, especially in tight urban spaces, at night, and indoor areas where this system shines. Along with quick coupling hydraulic hose connections, when on-site the E-Pack is easily unloaded and connected to a common 400V / (32A) 63A electric power supply. Its intelligent electric motor control system ensures efficient power use to lower costs versus diesel-powered cranes. Corresponding controls integrate seamlessly, while the hydraulic air conditioning system keeps the operator comfortable and in control with the E-Pack touch screen display.

Electrohydraulic system with zero emission at crane operation. Perfect for urban areas, at night or for indoor operation.

  • Axles 3
  • Max. Crane Capacity 45t
  • Main Boom Length 7.8m - 31.2m
  • Boom Extension 1.1m / 7.1m -13m
  • Max Tip Height 46m
  • Max Counterweight 5.3t
  • Outrigger Bases 6.40m x 6.20m
  • Hoist Line Pull 4.4t
  • Max. Radius 36m
  • Dimensions L: 8.70m W: 2.55m H: 3.18m
  • Engine Mercedes
  • Drive 6x4x6 (6x6x6)
