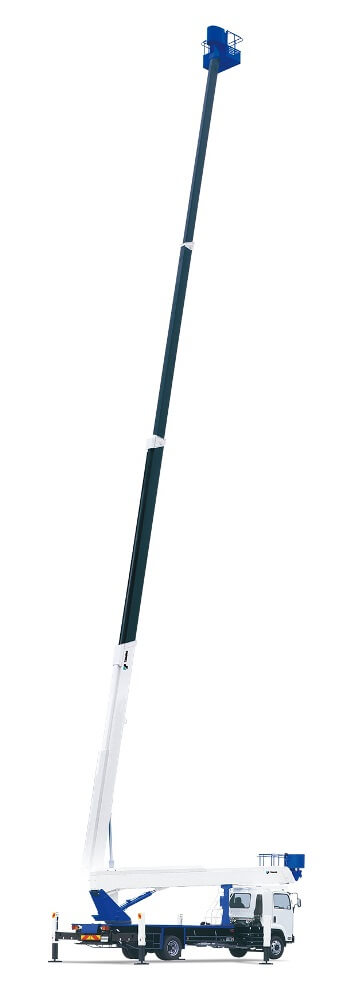

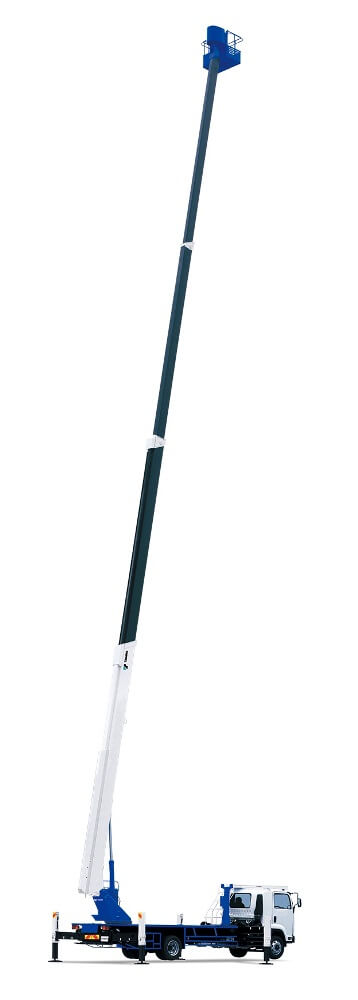

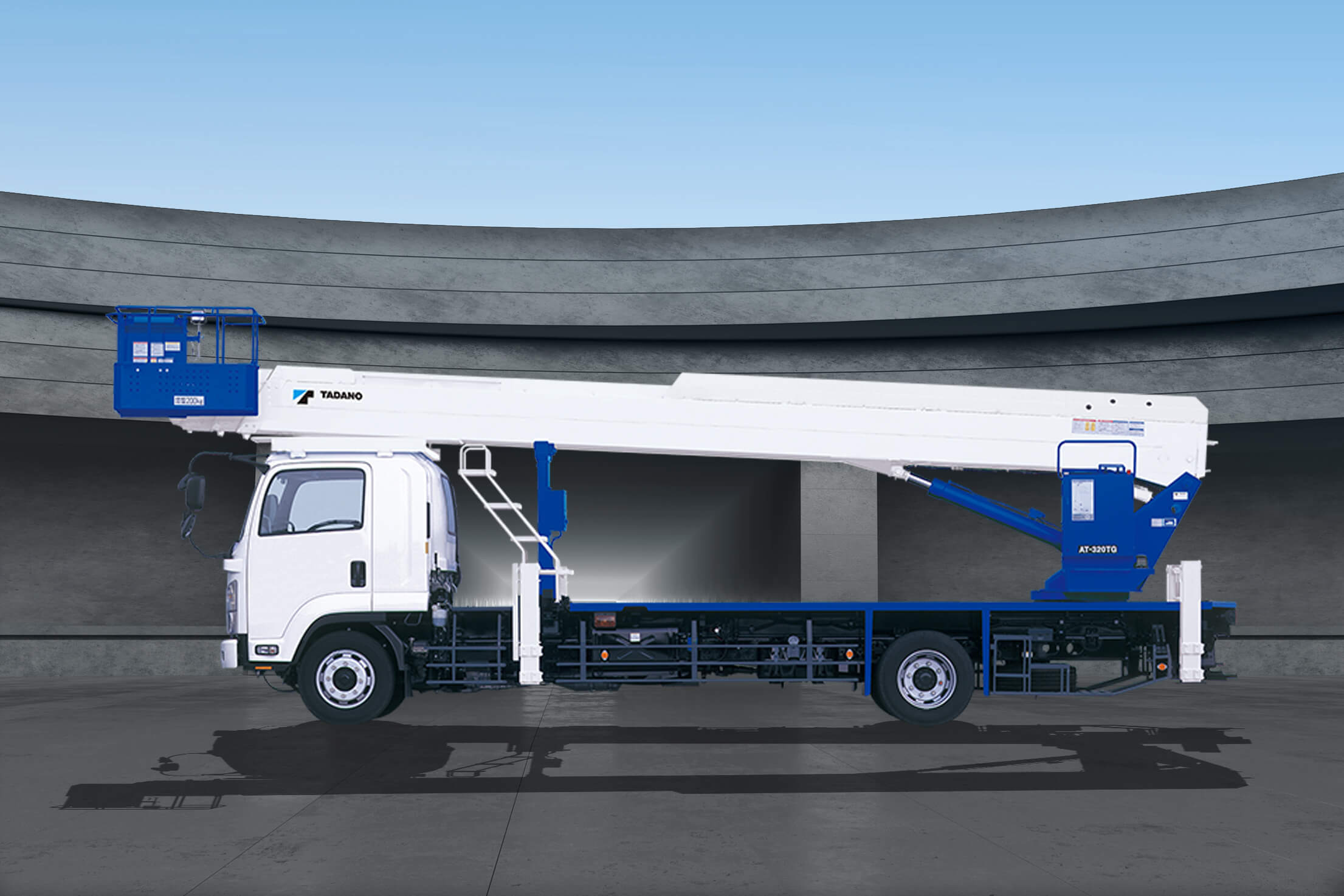

AT-320TG Aerial Work Platform
The AT-320TG is Tadano’s highest reach and heaviest load capacity in General Purpose Telescopic Aerial work platforms. The AT-300TG has become the standard in what AWP’s should be.
Features include:
- Maximum platform height of 32.2m
- Maximum load capacity of 250kg
- 4 motion control
- Automatic Moment Control (AMC)
- Elevation and Swing Speed Control System
- Smooth Start and Stop function for elevations, swing and telescoping
- Stroke End Shock Reduction System
- Boom Automatic Stowing System
AT-320TG Aerial Work Platform
The AT-320TG is Tadano’s highest reach and heaviest load capacity in General Purpose Telescopic Aerial work platforms. The AT-300TG has become the standard in what AWP’s should be.
Features include:
- Maximum platform height of 32.2m
- Maximum load capacity of 250kg
- 4 motion control
- Automatic Moment Control (AMC)
- Elevation and Swing Speed Control System
- Smooth Start and Stop function for elevations, swing and telescoping
- Stroke End Shock Reduction System
- Boom Automatic Stowing System
- Max. Bucket Loading Capacity: 250kg
- Material of Bucket: F.R.P
- Max. Bucket Bottom Height: 32.2 m
- Bucket Swing Slewing Angle: 200
- Bucket Dimensions: 0.7m x 1.2 m x 0.9 m
- Boom Length: 9.5 m – 30.5 m
- Elevation: -12 - 80
- Type of Boom: Telescopic
- Outrigger Extension: 4.66 m
